Aerospace Materials

In Singapore, a land brimming with vitality and opportunities, the waveof technology has never ceased. Singapore startera technology pte. Itd.,like a brilliant new star, shines brightly in the vast starry sky oftechnological innovation, driving the global transformation of terahertztechnology with a clear vision and mission.

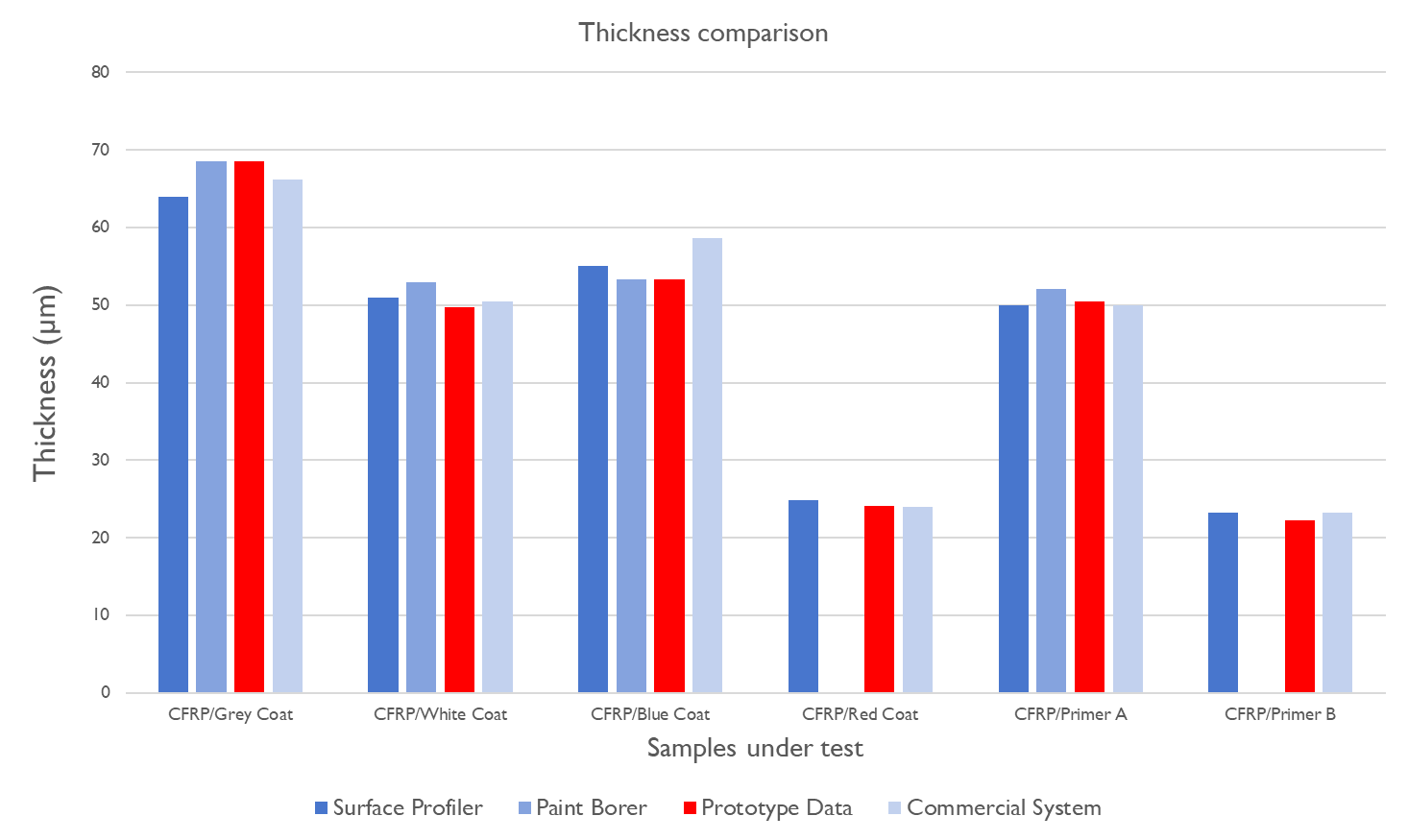

CASE 1：Thickness Measurement of Aerospace Materials

Samples:  Grey, White, Blue, Red, Primer A, Primer B on CFRP substrate

Compare among: Surface Profiler; Paint Borer; THz Portable System; Commercial Desktop system

Stable and reproducible paint thickness calculation >95% repeatability, through t-test calculation.

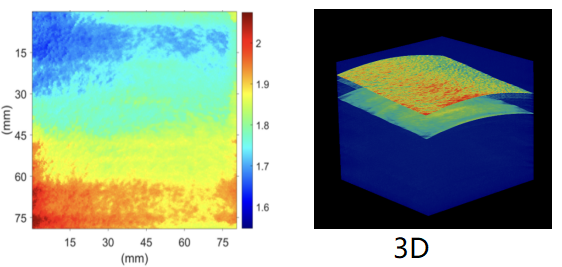

CASE 2：Measurement of Aircraft Thermal Insulation Coating

Early-stage defects  are more challenging to quantify and measure. Currently, a detection method based on terahertz time-domain spectroscopy addresses this by leveraging its fine resolution and the attenuation characteristics of a broadband spectrum to extract hidden structural and content information from layered structures.

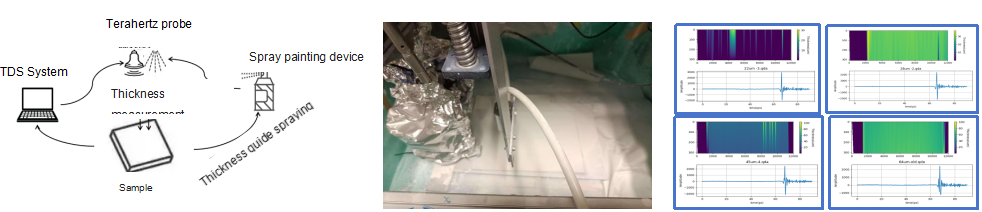

CASE 3：REAL-TIME AND CONTINUOUS PAINTTHICKNESS MONITORING AND SPRAYCONTROL SYSTEM

Terahertz (THz) technology offers a non-contact, non-destructive, and real-time solution for inline thickness measurement of wet paint films during industrial coating processes. Unlike traditional methods that require physical contact or post-curing analysis, THz waves can penetrate wet paint layers without interference, enabling precise thickness monitoring while the coating is still liquid.
